High precision Fiber laser cutting machine

Short Description:

For small metal sheet cutting, not only save the space to customer, but also save the cost. The appearance of the Fiber Optic Laser Cutter is very small and easy to move. No consumable, maintenance-free and has long life.

Send email to us

Product Detail

Product Tags

Product Introduction

High precision Fiber laser cutting machine also called High precision instrument processing metal tools fiber laser cutting machine,High precision laser cutting machine. 6040 Fiber Laser Cutter，6060 fiber laser cutter etc.

This machine suitable for small metal sheet cutting. This kind of Fiber Optic Laser Cutter is not only save the space to customer, but also save the cost. The appearance of the Fiber Optic Laser Cutter is very small and easy to move. No consumable, maintenance-free and has long life are the most advantages

Features

1. Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air.
2. High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours.
3. High speed and efficiency, the speed of cutting metal sheets close to tens of meters.
4. The laser maintenance free.
5. The cutting edge looks perfect and the appearance is smooth and beautiful.
6. Imported the transmission mechanism and servo motor, and high cutting accuracy.
7. Dedicated software enables graphic or text to be instantly designed or processed.

application

Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts,automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships,metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration,advertising，metal processing, kitchen processing and other manufacturing and processing industries.

Material Application:
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum,aluminum alloy, galvanized sheet, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet and pipe cutting.

Parameters

TK6040-2000

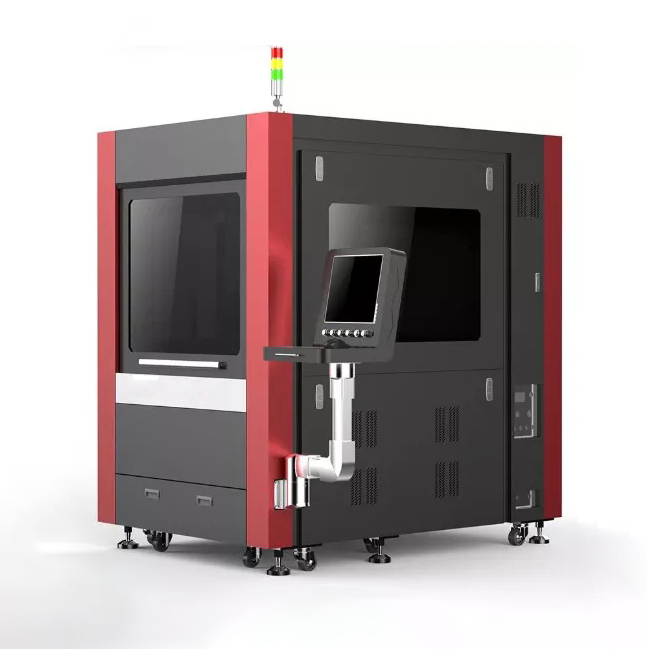

TK6060-2000

Model	TKF-6040-2000/	TKF-6060-2000/
Laser machine cutting area	600x400mm	600X600mm
Fiber Laser Power	1000/1500W/2000W	1000/1500W/2000W
Laser wave length	1064nm	1064nm
Transmission system	High quality ball screw transmission	High quality ball screw transmission
X.Y axis location accuracy	±0.01mm	±0.01mm
X.Y axis repeat location accuracy	±0.006mm	±0.006mm
X.Y axis max moving speed	40m/min	40m/min
Max cutting speed	1--40m/min(it will according to metal material and laser power)	1--40m/min(it will according to metal material and laser power)
Cutting thickness	Detailed in the following cutting thickness	Detailed in the following cutting thickness
Application Material	Metal sheet	Metal sheet
Application Material	Iron/CS/SS/Aluminum/Copper and all kinds metal	Iron/CS/SS/Aluminum/Copper and all kinds metal
Advantages	>Excellent beam quality	>Excellent beam quality
	>Simple , compact, electrically and optically efficient	>Simple , compact, electrically and optically efficient
	>Compatibly powerful and reliable	>Compatibly powerful and reliable
	>Maintenance free	>Maintenance free
	>multilingual, more than 11 foreign languages	>multilingual, more than 11 foreign languages
	>3 years warranty .	>3 years warranty .
Gross weight	2000KG	2200KG
Machine size	1800(W)1460(L)1700(H)mm	200(W)1810(L)1950(H)

Main parts

Raytools Laser Cutting Head
Optimized optical configuration and smooth and efficient airflow design.

Ball Screw Transmission
Grinding Precision Screw Transmission, improve machine precision perforamnce.

1000w Fiber Laser Generator
Raycus laser generator, 1500w 2000w 3000w 4000w 6000w 8000w 12000w.etc, optional. IPG,NL ,Max different brand avilable
