Gold, silver and precious metal precision optical fiber cutting equipment

Short Description:

For small metal sheet cutting, not only save the space to customer, but also save the cost. The appearance of the Fiber Optic Laser Cutter is very small and easy to move. No consumable, maintenance-free and has long life.


Product Detail

Product Tags

Product Introduction

Gold, silver and precious metal precision optical fiber cutting equipment

The standard format 600x400mm laser cutting machine has fast speed, stable performance, high efficiency, automatic feeding, can cut special metal materials, faster operation and lower labor cost. Precision special-shaped cutting equipment for magnetic metal materials, optimizing the processing technology of special-shaped materials.



Features

1.The equipment adopts the double-drive gantry structure design and the whole lathe bed is in good heat treatment rigidity without deformation.

2.In dust-proof design, which reduce the dust pollution and ensure the long-term stable operation of machine tools.

3.Adopt the Taiwan guide rail and linear double-drive gantry design imported encoder, which is in high precision, fast speed and stable performance.

4.Adopt the advanced and professional laser control system, which has powerful function, easy to operate, and could reduce the recruitment costs.

5.The equipment is in low consumables and cost, the operators can maintain the equipment by themselves after training.

6.Another advantage of this equipment is that the machine can not only cut the metal plate, but can be used to cut round pipes when equipped with a rotating platform.

application

This precision fiber cutting machine,can OEM customized , with a format of 600x400mm, can process various medium and small precision workpieces quickly and with high precision; it can cut various metal plates with low cost and high efficiency.

Material Application:
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum,aluminum alloy, galvanized sheet, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet and pipe cutting.



The laser cutting machine with a format of 600x400mm can process various medium and small precision workpieces quickly and with high precision; it can cut various metal plates with low cost and high efficiency.

Widely used in craft gifts, advertising signs, clocks and glasses, luggage and clothing, home appliances, kitchen and bathroom, auto parts, precision machinery, lighting, hardware products, IT digital products, mobile communications, electronic components, computer manufacturing, new materials and other diversified industries . It is especially suitable for metal materials such as stainless steel, iron plate, copper plate, aluminum plate and carbon steel, and has excellent processing effect on various high-hard and brittle alloys.

Parameters

TK6040-2000

TK6040-20003



Model TKF-6040-1500W/2000W/3000W
Laser machine cutting area 600x400mm
Fiber Laser Power 1500W/2000W/3000W
Laser wave length 1064nm
Transmission system High quality ball screw transmission
X.Y axis location accuracy 0.01mm
X.Y axis repeat location accuracy 0.006mm
X.Y axis max moving speed 40m/min
Max cutting speed 1--40m/min(it will according to metal material and laser power)
Cutting thickness Detailed in the following cutting thickness
Application Material Metal sheet
Iron/CS/SS/Aluminum/Copper and all kinds metal
Advantages >Excellent beam quality
>Simple , compact, electrically and optically efficient
>Compatibly powerful and reliable
>Maintenance free
>multilingual, more than 11 foreign languages
>3 years warranty .
Gross weight 2000KG
Machine size 1800(W)*1460(L)*1700(H)mm

Main parts

sample

Raytools Laser Cutting Head
Optimized optical configuration and smooth and efficient airflow design.

sample

Ball Screw Transmission
Grinding Precision Screw Transmission, improve machine precision perforamnce.

sample

1000w Fiber Laser Generator
Raycus laser generator, 1500w 2000w 3000w 4000w 6000w 8000w 12000w.etc, optional. IPG,NL ,Max different brand avilable

sample

Friendess Controller
A set of reasonable laser cutting solutions cut from the medium power laser cutting system.

sample

Yaskawa Servo driver and motor
Adjustment-free function, realize instant-on-use, automatic tuning function, improve performance.

sample

S&A Water Chiller
It adopts dual temperature dual control mode and can switch to intelligent temperature control mode.

sample

with this rotary can for both flat and pipe which diameter not more 50mm..

Application

detail

Brass precision parts

detail

Different shap cutting

detail

House decortion

detail

Arts&crafts

detail

Advertisment logo

detail

Kitchenware

Sample

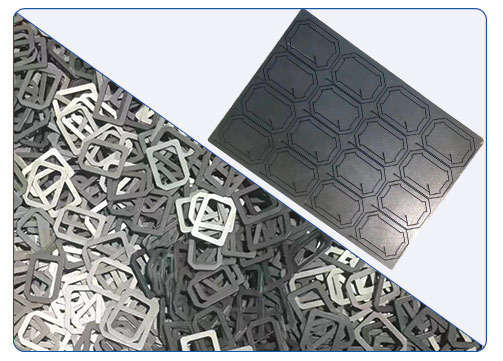

6374779804726873887785244_07

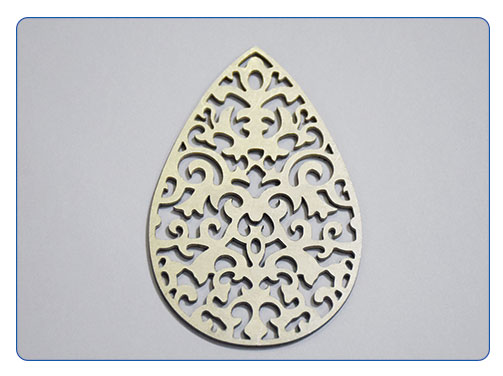

6374779804726873887785244_17

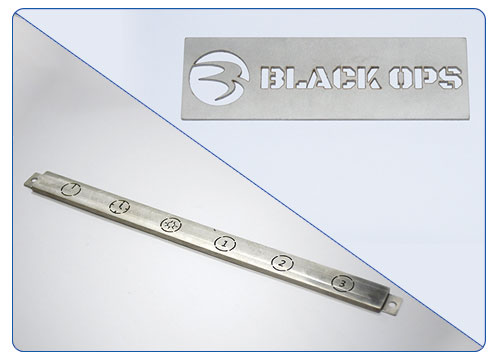

6374779804726873887785244_09
6374785420124527632163543_03
sample
sample
sample
sample
