Handheld Fiber Laser Welding Machine

Short Description:

Techkey Laser fiber laser cutting machine for sale is an affordable, easy-to-use, and versatile tool that can help you begin a new start-up venture or increase the profits of your well-established company. This type of fiber laser cutter is suitable for cutting stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium ect., and has been widely used in advertising, high pressure / low voltage electrical cabinet production, textile machinery accessories, kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.

Send email to us

Product Detail

Product Tags

Product Introduction

Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries.

Parameters

Model	TKW-1000/1500/2000
keywords	1000w 1500w 2kw handheld fiber laser welding machine
Laser Power	1000w/1500w/2000w
Applicable Materials	Stainless steel, carbon steel, copper, aluminum etc.
Materials Thickness	0-5mm
Output Power Stability	±2%
Fiber Optic Length	Fiber Optic Length
Laser Wave length	1070nm
Working Temperature	15-35℃
Weight	280kg
Specified voltage	220V/380V

details

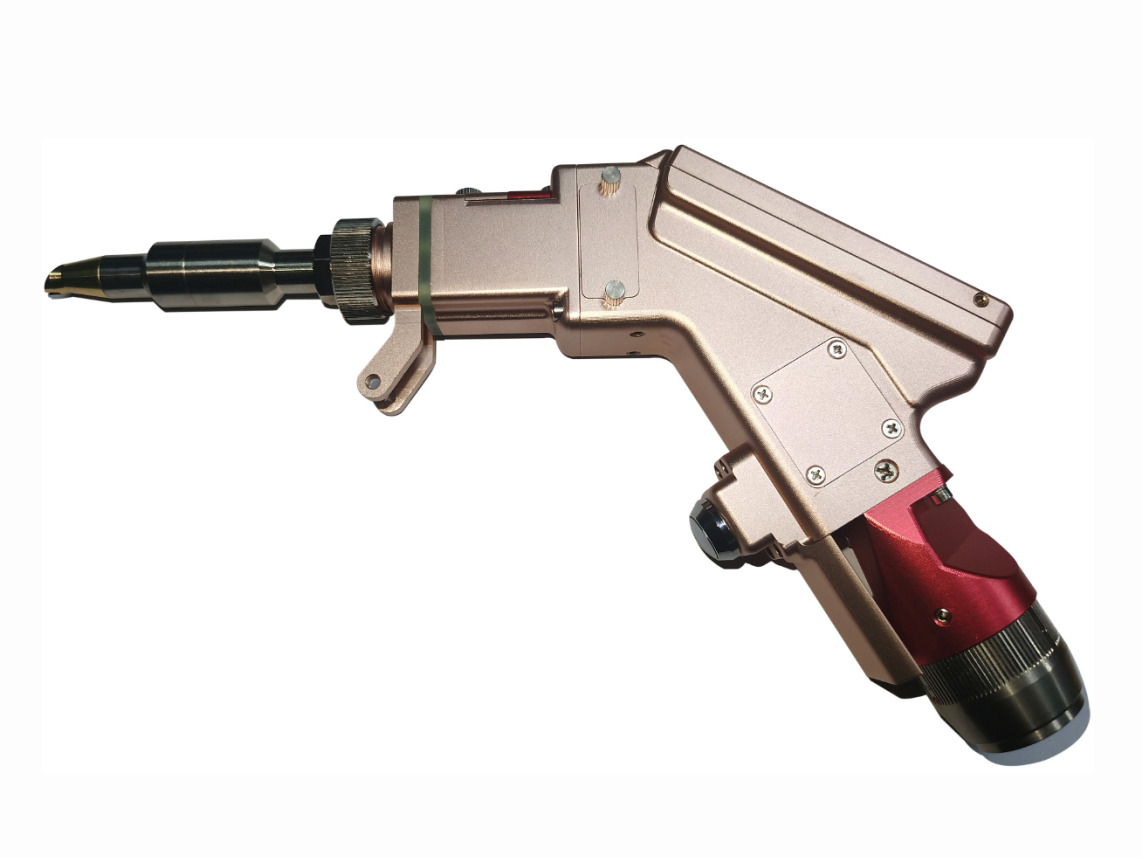

Dual-drive Handheld Swing Laser Head

There are 6 welding modes and multiple welding nozzles to meet different welding needs; it has a safety sensor function, which emits a laser after touching the metal and automatically locks the light when it is removed; the spiral jittery function, the width of the weld can be adjusted, and the welding ability is significantly improved.

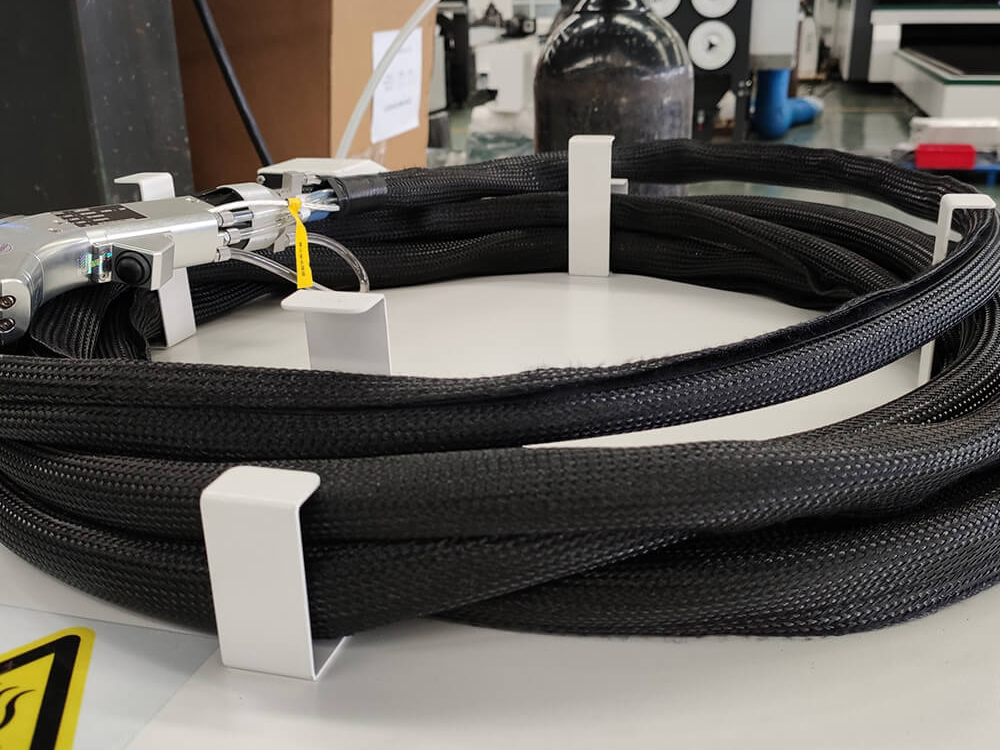

Standard 15 Meters Optical Fiber

It is conventionally equipped with 15-meter optical fiber, which can realize long-distance, flexible welding in large areas and reduce operating limitations

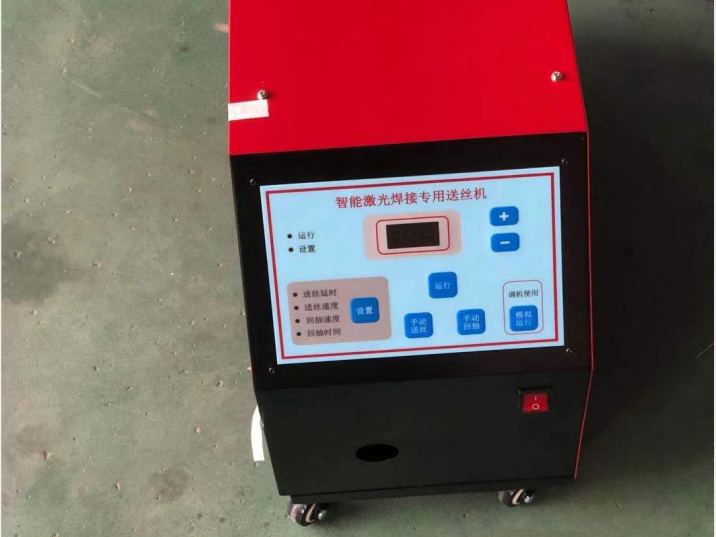

Auto Wire-feeder device

The machine is equipped with automatic wire-feeder device, which can easily adjust the parameters and provide multiple choices for
customers.It can effectively make up for the welding seam produced in the welding process, so that the welding more closely bonded.

A Variety Of Welding Modes

It can be used in 6 models:
-Point shape
-one shape
-0 shape
-double 0 shape
-triangle-figure eight welding

It can deal with various welding scenes, to meet various welding requirements of customers

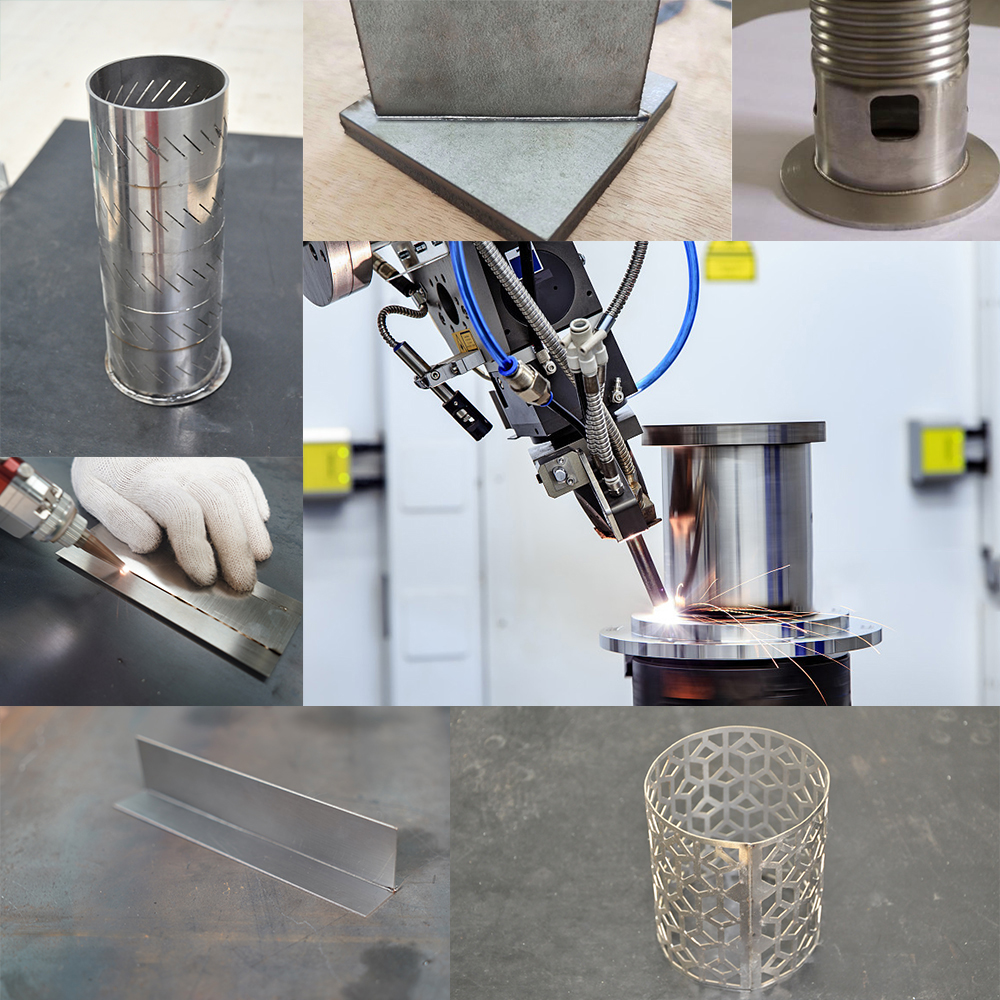

application

Main Advantages

The Laser welding is to irradiate a high energy density laser beam on two parts of the material, melt the material and then cooling and solidification into one. Compared with traditional welding technology, the Auto wire feeding hand held laser welding has the following advantages:

1. The weld seam is smooth and beautiful, it doesnot need to be polished or the workboard of the polish is very small.
2. Through control the laser energy, the welding will not defrom or very few deformation.
3. Handheld laser welding machine is easy to handle and needn't to require the professional welders.
4. The wobble welding machine can handle the hard welding material easily, such as aluminum, brass.
5. Long life span up to 100,000 hours and low comsumption.
6. the Auto wire feeding handheld welding machine can weld parts with wider gap.
7. With a 8-15m fiber line, It can weld long-distance and large- area parts.
8. Various welding processes, such as spot welding, seam welding and overlap welding.
9. The welding efficiency is around 5 times of TIG welding.
10. It is welding used in electronics, sheet metal, air condition industry etc.
