Desktop UV laser Marking machine

Short Description:

UV laser marking machine takes 355nm pumped purple light laser device as the light source and take advantage of previous enerations machine to gain smaller diameter of focusing spot and fine marking effect.

Send email to us

Product Detail

Product Tags

Product Introduction

Purple light UV laser marking machine takes 355nm pumped purple light laser device as the light source and take advantage of previous generations machine to gain smaller diameter of focusing spot and fine marking effect.

The metal absorb purple light higher than infrared and therefore more suitable for marking
on metal and glass materials compared with infrared pump machine. Narrower pulse width
of laser makes a shorter time of processing on materials, thus the materials avoid being
deformed or burnt due to thermal. With smaller heat affected area and more beautiful
marking effect, our products can meet customer’s demand of higher marking requirements.

TKUV-3W/5W/10W laser marking machine (3W/5W/10W) is featured with compact structure with extremely convenient installation and debugging. They have adopted the built-in laser diode technology to avoid the effect of fiber shaking on output laser. Besides, the beam quality is excellent enough to ensure the stability and reliability for mass production, which can meet the special manufacturing and processing demand in harsh industrial working condition..

Features

1. Adopting doubling technique of intracavity frequency has greatly improve the stability of laser. Design on laser cavity adopts a series of optimization method, so as to ensure the beam quality as the fundamental mode.
2. The machine takes355nm pumped purple light laser device as the light source. Narrower pulse width and smaller heat affection contribute to generate peak power.
3.Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so it’s very suitable for precision marking. Higher pulse repetition frequency meets the need of quick marking and high production efficiency.
4. High efficiency of the photoelectric conversion and long service life.
5. Automatic in a rotary table(optional item), convenient feeding, fast speed, high efficiency.
6. It can support logos and graphs designed in DXF format from Auto-CAD, PLT, BMF, AI, JPG, etc.
7. It can markdate, bar code and two-dimension code automatically.
8.Superior performance, good stability, high conversion rate and low energy consumption.

application

(1)It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2)Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3)Pharmaceutical, food, beverage and cosmetics industry.
(4)Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, previous to light polymer materials, plastic, fire prevention materials etc..

PVC Marking

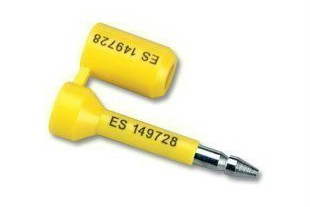

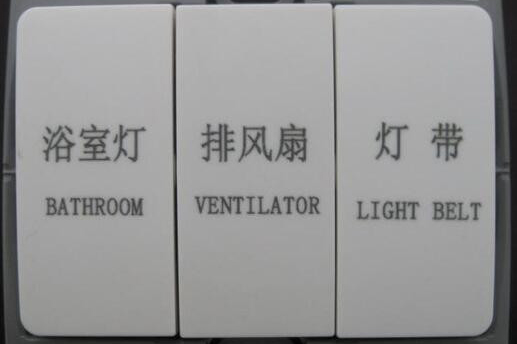

Plastics Marking

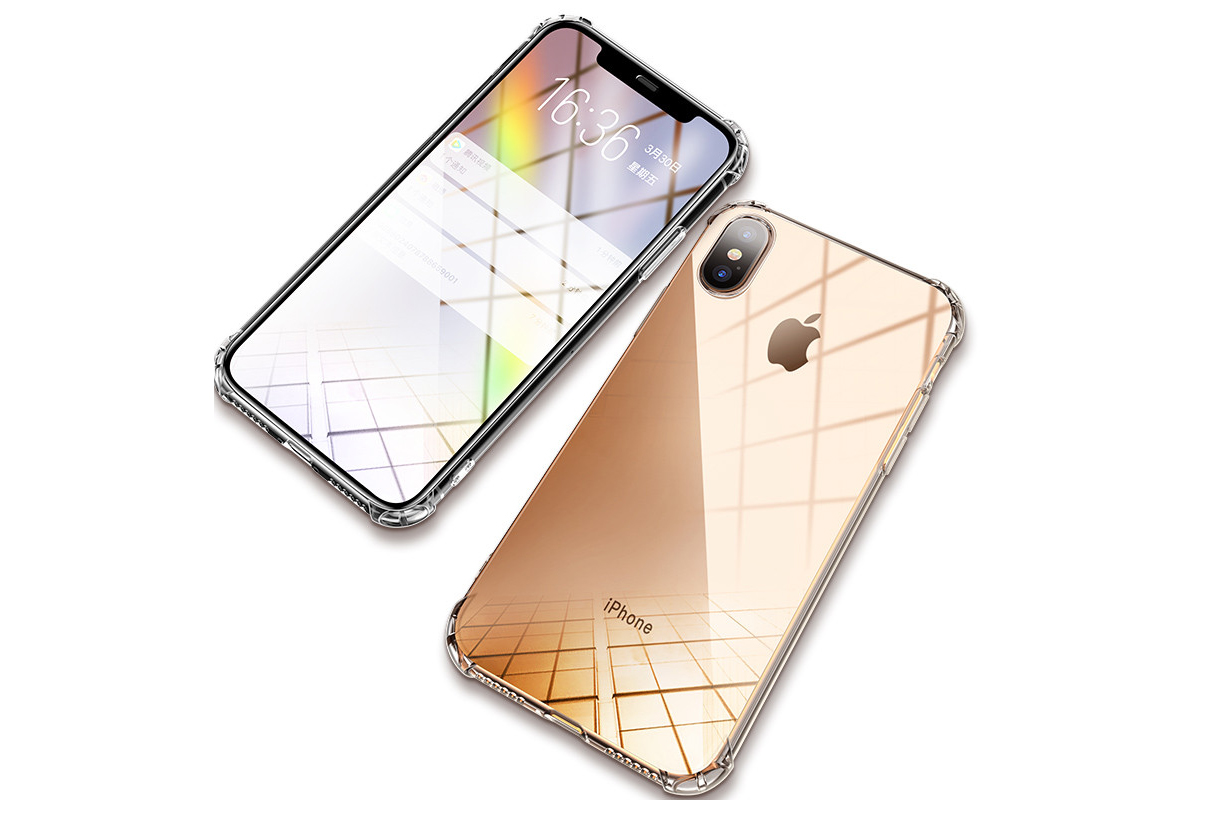

Phone Shell Marking

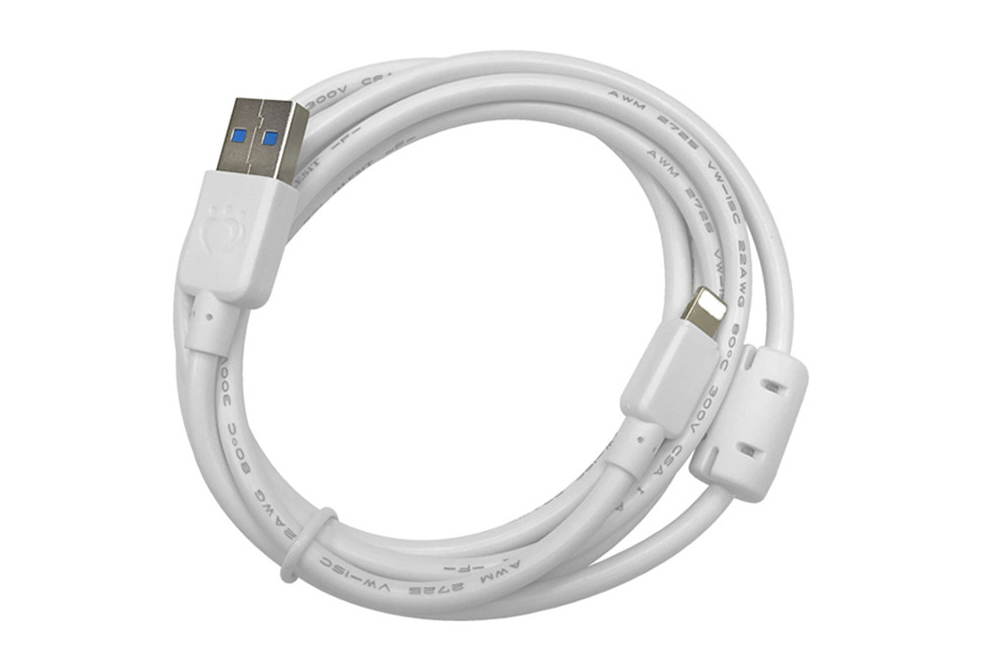

Cable Marking

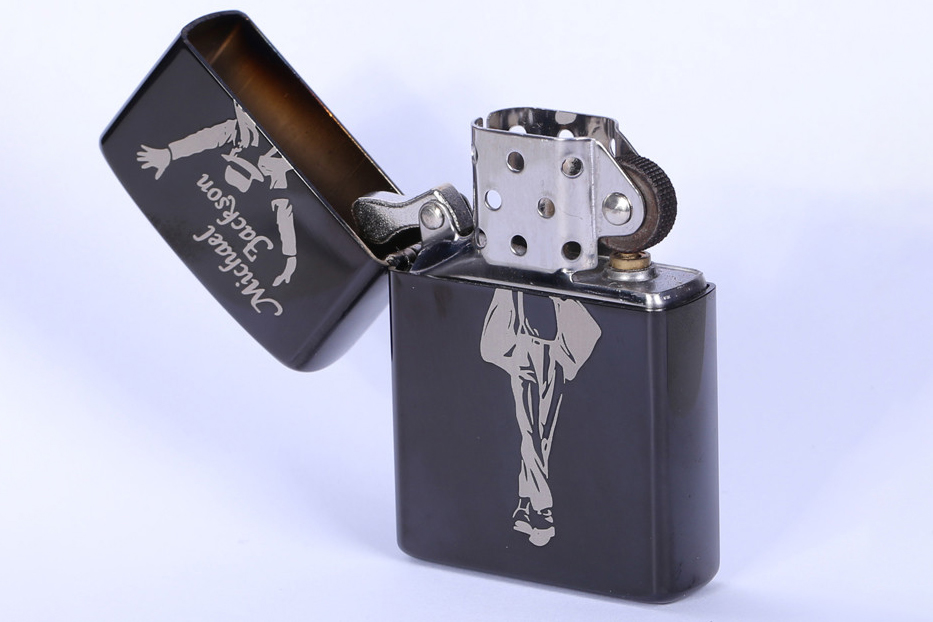

Coated Lighter

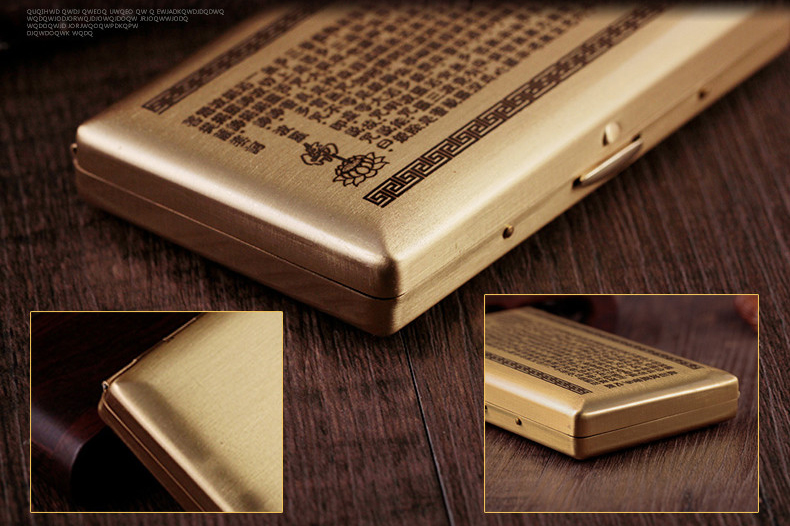

Gilt Marking

Abs Lock

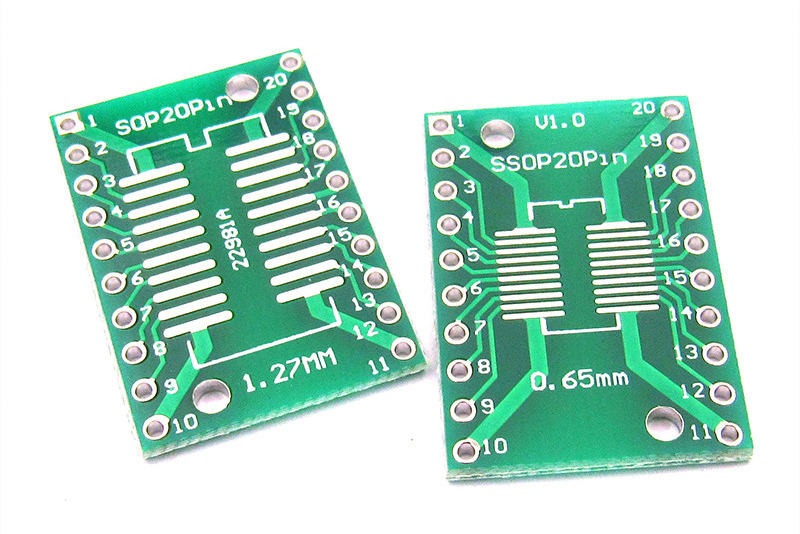

Circuit Board

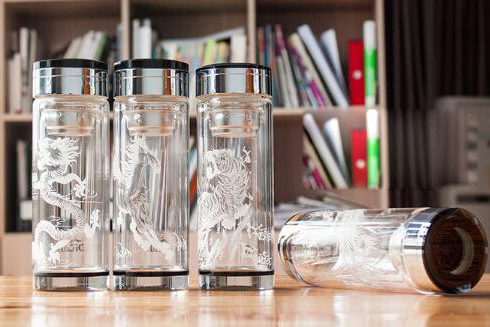

Glass Marking

Special Materials Marking

Qr Code Bar Coard

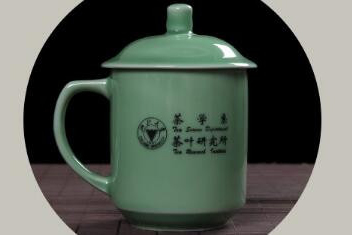

Ceramic Marking

Technical Pramete

Modle NO.	TKUV-3W	TKUV-5W	TKUV-10W
Laser Source	UV LASER
Laser Source Lifetime	100,000 hours
Laser Source Power	3W,5W,10W
Marking Area(mm)	5050mm, 100100mm
Beam Quality	≤2
Marking Speed	0-12000mm/s
Fiber Laser Wavelength	355nm
Volt	110V-220V, or according to your request ,Single-Phase Circuit / 50/60Hz /4A
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Repeated Frequency	10khz--- 100khz
Graphic Format Supported	PLT, DXF, DXP, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF, DST, DWG, LAS, etc
Resolution	18μ
Repeatablility	50μ
Linear Speed	800 character/ s
Certificates	FDA, CE, ISO, CCC, PSE, IC, RoHS, EUT, FC
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Optional	Laptop, Desktop Computer, Rotary Head, Electric Up-down Working Table
Dimension(LWH)
Weight (KG)
