3D laser crystal Inner engraving machine TK3D

Short Description:

The 3D laser crystal Inner engraving machine, usually also be called as 3D Laser machine,
Crystal laser machine, 3D crystal Engraver, 3D crystal laser subsurface engraving machine which is a special kind laser machine used for make 2d or 3d laser images or 2d images into crystals, this kind unique and attractive crystal gifts, the engraved image will not get fade forever, so, it’s a new and great business in most countries of world.

Techkey Laser, which is a professional manufacture only focus on 3d crystal laser engraving machines for more than 18 years,we offer full range crystal laser gifts for your business,if you need this kind machine , contact us now.


Product Detail

Product Tags

Features

1. Own made laser box, we use the USA imported Diode pump, and Isreal YAG, and Europe Q switch,designed the own special laser box, which make high power 532 laser beam, our laser pulse width which is smaller can ensure the high strong laser power; We have the own technology of the green laser box, other factory are bought whole laser box from other chinese factory, so if any questions, we can offer faster feedback for any problem.
2. Own designed with own patent Air cooling system, to make sure the laser works at the high efficiency, the temperature control for the optical spare parts is very important,we designed own air cooling system to control it, and make the laser machine can continuous works long time.
3. Use special good quality material, pay attention to any details of the machine
4. Full ranges machines, and have OEM ability of any sizes machines you have In our company, we have different sizes machines suitable for different shop places, mall require small size machine, factory need bigger, tell us your request, you can get the best suitable for your business.

application

It is especially suitable for artificial crystals, glass, acrylic and other transparent hard materials, which can engrave both 2D and 3D portrait, buildings, name footprints, trophies/awards, medals and other personalized gifts and souvenir.

Widely used for the personalized gift shops,such as the gift shops in the shopping mall,in tourism place,etc. and the photographic studio, hospital, schools, online gift shop, etc. as well as the mass production processing, glass decoration, glass marking, high-grade glass anti-conunterfeiting and other areas.

application

Parameters

TK3D-MINI

TK3D-MINI

TK3D-ROCKET

TK3D-4K

TK3D-HD

TK3D-5K
Model TK3D-200 TK3D-ROCKET Tk3D-HD
Laser Media Semiconductor pump
Laser Wavelength 532 nm
Engraving Area 200*200*120 mm 350*400*120 mm 350*400*120 mm
Fast Engraving Speed 4000dots/sec 5000dots/sec 6000dots/sec
Resolution 800~1200 dpi
Engraving Point Size 40µm -80µm
Engraving Point Distance 0.06~0.12mm
Three-axis repeat positioning accuracy <0.03mm/300mm
Focal Distance 100 mm
Machine Power/ Volt 1.5 KW/220 V/50 Hz
Cooling Mode Air cooling

Sample

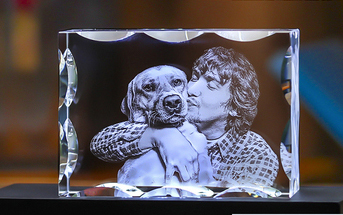

Personalization-gift

285185

Personalization-3D

products

Personalization-dog

Animal

products

Glass inner engraving -totem

Personalization-cat

Trophy

Crystal DIY- new baby

Personalization-Necklace

products

Personalization-keychain

products

Medical model

Necklace

engraving on glass

products

Seal

Candlestick

Personalization - Cube

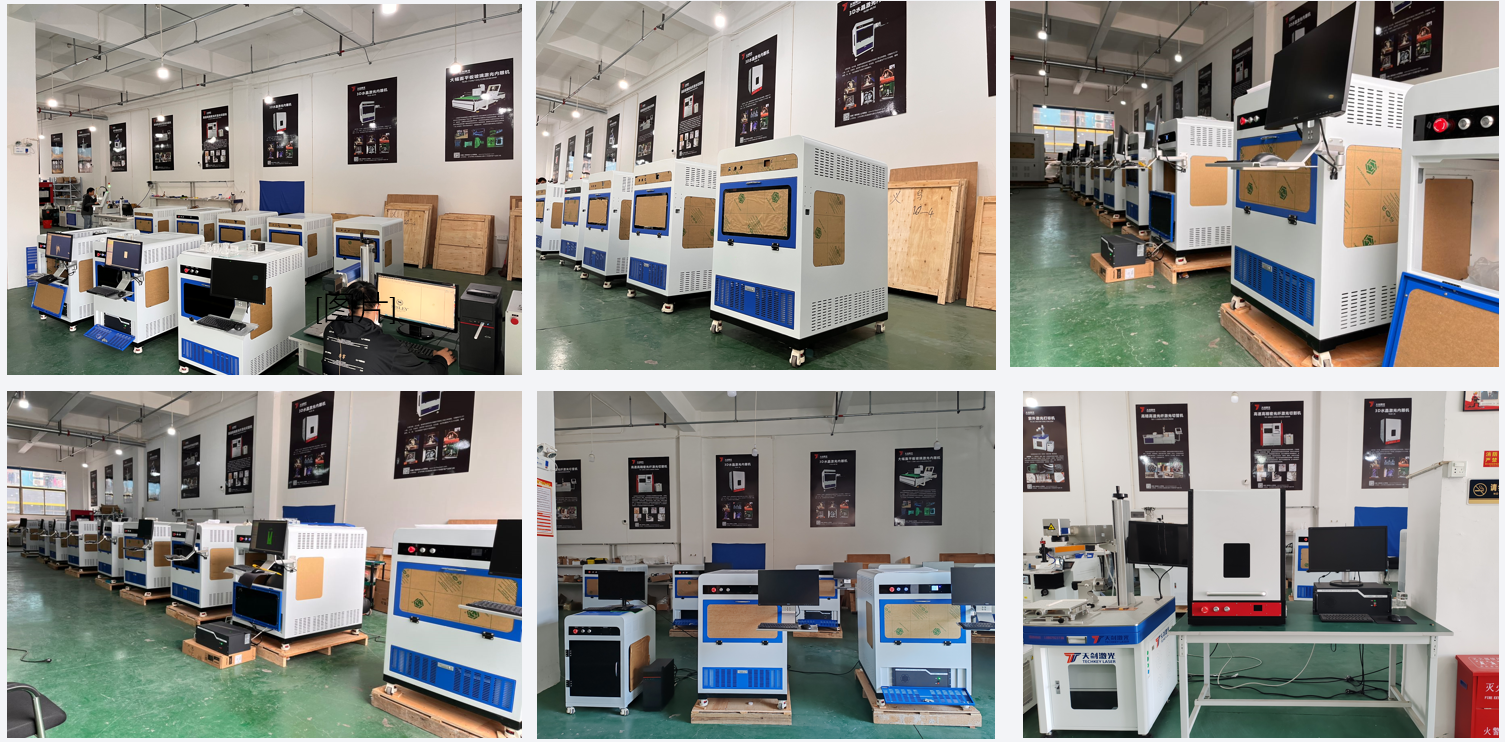

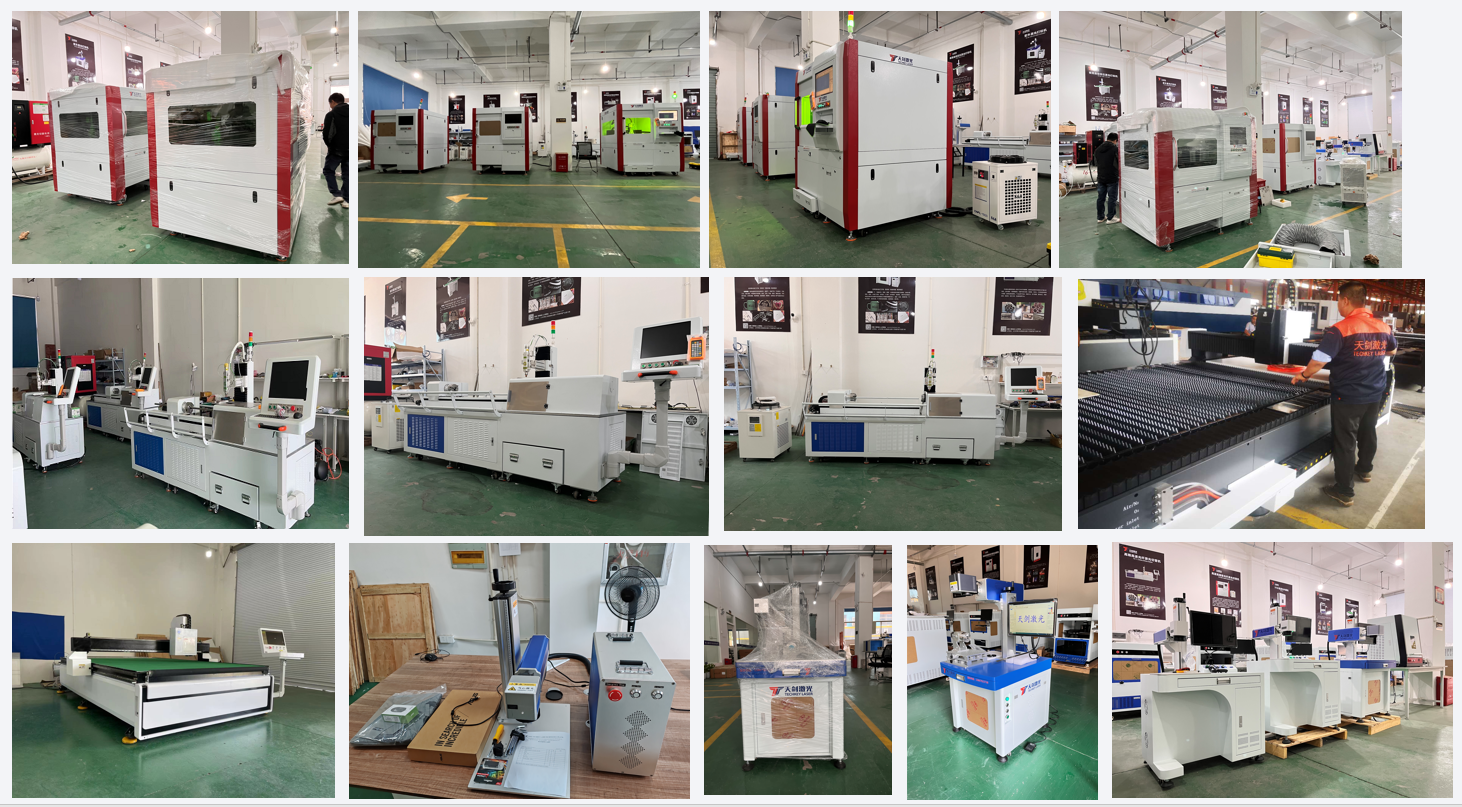

Factory Show

20
21

Exhibition show in the world

exhibition
exhibition
exhibition
exhibition
exhibition
exhibition
